Key Features
- Fully Automatic
- Three Wavelength System
- Performs 40-48 Tests in 8 Hours
- Completely Randomized Operation
- Runs on any Truenat Chip
- Portable
- Battery Operated
Components | Quantity |

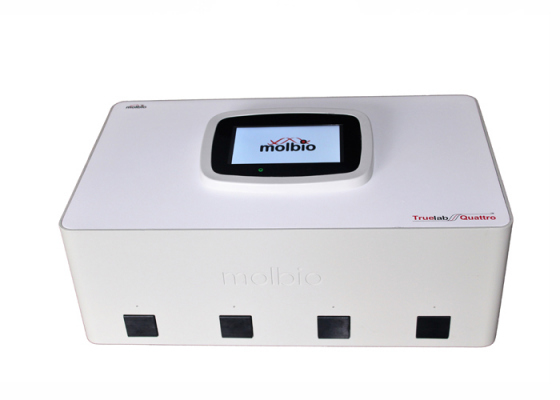

Truelab Quattro Real Time Quantitative micro PCR Analyzer | 01 |
AC Adapter to power the Truelab Quattro | 01 |
Truelab Antenna (Black) for cellular connectivity | 01 |
Truelab Antenna (Green) for WiFi connectivity | 01 |
Truelab Microtube Stand | 01 |
Truepet SPA fixed volume precision micropipette - 6 µl | 01 |
Truelab Quattro Real Time Quantitative micro PCR Analyzer User Manual | 01 |
Principle | Patented real-time micro PCR |
Optics | Fluorescence, Three Wavelength |
Speed | 40 cycles of PCR/35 minutes |
Throughput | 4 chip-Random access |
Interface | Wi-Fi, 3G, Bluetooth |
Calibration | Auto-calibration |
Memory | 20,000 test results |
Operating environment | Temperature: 15-40oC, RH: 10 -80% |
Display | 5” Capacitive Touch Screen TFT-LCD |
Printer | External 2” Bluetooth Thermal Printer |
Power | Rechargeable Lithium Ion Battery Pack: 7.4 V; 8.7 Ah. Input to AC/DC adaptor: Single Phase 100-240 V; 47-63 Hz; 1.35-0.53 A Output from AC/DC adaptor: 10 V; 4.5 A; 45 VA. If the input specifications in your country do not meet the above requirements, please contact your local Molbio representative. |
Weight | 5.2 kgs |
Size | 400 mm x 242 mm x 159 mm |
